Taw qhia

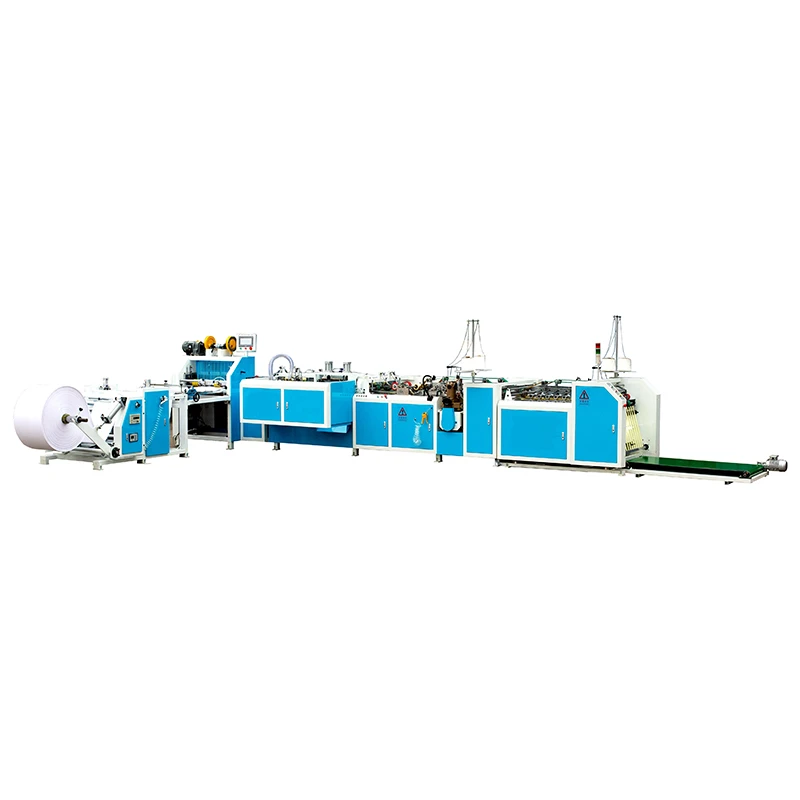

Rau lub tshuab no.Lub Unwinder yog nruab nrog nws pib of elevator thauj ntaub txiav, ua haujlwm yooj yim. EPC nruab, seev cev rau cov menyuam tswj nruj, Inverter tswj unwinding ceev.
Phau ntawv & adjustable twisting & Gusset ntaus ntawv, ua haujlwm yooj yim. Kauj ruam los ntawm kauj ruam gusseting ntaus ntawv. Take-up unit tswj nro, dancing roller ua gusseting khov kho.
Servo Tsav tswj kev pub mis, Ob chav Cam tsim rau kev khiav haujlwm ruaj khov. Mark Sensor txhawm rau txheeb xyuas cov ntaub ntawv luam tawm, Servo tswj kev pub noj ntev rau cov ntaub ntawv uas tsis yog luam ntawv, ua tiav qhov raug txiav. Vertical & Kub Cutter nrog lub qhov ncauj qhib qhov system rau ib txwm ntaub, txias cutter rau Laminated ntaub. PLC & Inverter tswj txiav ceev, sync tswj.
Servo lub cev muaj zog hloov lub hnab ntim tom qab txiav, ua tiav qhov kev hloov pauv thiab kev khiav haujlwm ruaj khov, Lub Hnab Ob Lub Qhov Ncauj Qhib kom cov hnab qhib qhov ncauj tag, thiab ua rau Valve yooj yim.
Valve Ua los ntawm servo tswj, qhov luaj li cas ntawm Valve tuaj yeem hloov kho thiab txiav chav ua kom lub hnab ntim valve phim qhov loj thiab saib zoo.
Ob txheej ntawm Sewing Lub taub hau los xaws hauv qab thiab lub qhov ncauj ntawm kab. Nruab nrog ib qho folding ntaus ntawv, Inverter tswj kev ceev ceev, txoj hauj lwm ntawm ob chav xaws tuaj yeem hloov kho kom haum rau qhov sib txawv ntawm cov hnab. PLC & Inverter rau sync tswj.
Sensor & PLC tswj, Nws pib suav, stacking & conveyor-siv advancing.
Specification
|
Yam khoom |
Parameter |
Lus hais |
|
Npuag dav |
370mm -560 hli |
nrog Gusset |
|
Max Txoj kab uas hla ntawm Fabric |
φ1200 hli |
|
|
Max. Hnab Ua Ceev |
30-40pcs/min |
Hnab hauv 1000mm |
|
Ua tiav Lub Hnab Ntev |
550-880 hli |
Tom qab Valve Txiav, Folding & Sewing
|
|
Txiav raug |
Tsawg dua los yog sib npaug li 5 hli |
|
|
Max Valve Loj |
Max 120x240 |
Qhov siab x dav |
|
Max. Tshuab xaws ceev |
2000 rpm |
|
|
Gusset qhov tob |
40-45 hli |
Raws li tus neeg thov kev thov |
|
Stitch Range |
Max 12 hli |
|
|
Folding Dav |
Max 20 hli |
|
|
Kev sib txuas fais fab |
19.14 kwm |
|
|
Tshuab hnyav |
Txog 5T |
|
|
Dimension (zeeg) |
10000x9000x1550mm |
|
Feature
1). On line txiav & Valve Ua & Ob sab Sewing, tuaj yeem txiav & xaws ib yam
2). Servo tswj kev txiav raug
3). On line Twisting & Gusseting
4). Vertical Thaum tshav kub kub txiav rau ib txwm ntaub, Txias Cutter rau Laminated Fabric
5). Ntug Txoj Haujlwm Tswjhwm (EPC) rau Unwinding
6). Servo Manipulator hloov lub hnab Woven tom qab txiav
7). PLC Tswj, Digital Zaub rau Kev Ua Haujlwm Saib Xyuas thiab Chaw Ua Haujlwm
